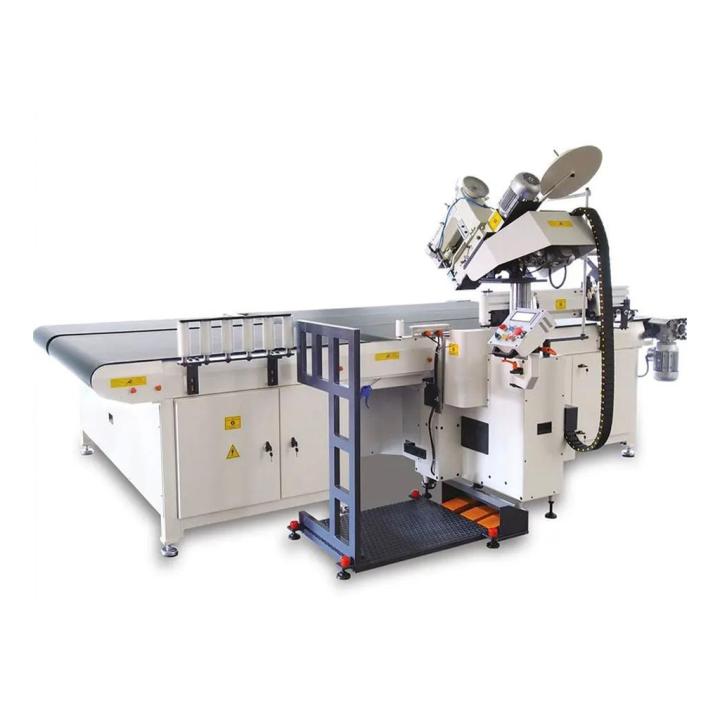

Masina automata de incheiat saltele Nexus-3500PF

Specificatii tehnice:

Capacitate Productie (min.|max.): 130 buc./8 h (140mm-190mm) | 180 buc./8 h (90mm-190mm);
Inaltime Saltea (min.|max.): 100mm | 450 mm;
Dimensiuni Saltea (latime x lungime) (min.|max.): 60 x 120 cm | 200 x 210 cm;
Viteza Coasere (cusatura 3mm) (min.|max.): 900 mm (300 s.p.m.) | 9000 mm (3000 s.p.m.);
Viteza Coasere (cusatura 4mm) (min.|max.): 1200 mm (300 s.p.m.) | 12000 mm (3000 s.p.m.);
Viteza Coasere (cusatura 5mm): (min.|max.): 1500 mm (300 s.p.m.) | 10750 mm (2150 s.p.m.);
Temperatura Lucru (min.|max.): 0 C | 40 C;
Consum Total: 3.5 kW;
Cerinte Aer: 6 bar. 90 p.s.i.;
Cerinte Putere Electrica: trifazic 380V, monofazic 220V, 50-60 Hz, siguranta 25A - cablu 4x4mm;

DIMENSIUNI:

Lungime: 400 cm;
Latime: 285 cm;
Curea Conveior: 92 cm;
Inaltime: 190 cm;
Sistem: 4 conveior cu sistem curea;
Greautate: 1350 kg;

COMPONENTE:

PLC, invertor si touchscreen: MITSUBISHI;
Componente electrice: TELEMECANIQUE, OMRON, WEIDMULLER;
Cap coasere: PFAFF 5625/1;
