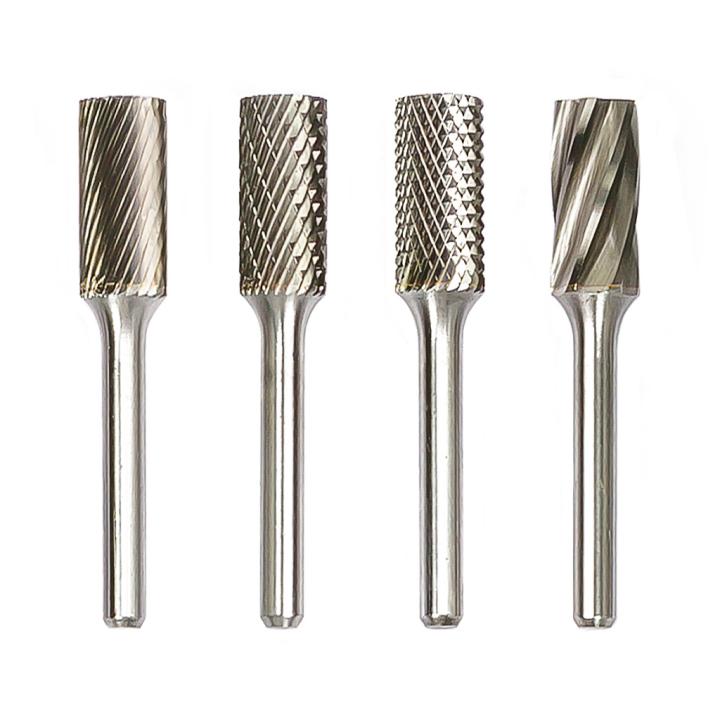

Freze A

Properties    Connection
connection 1 model  outside
connection 1 size (mm)  3, 6
connection 1 type  straight shank

Dimensions

length shaft (mm)  25.5, 45, 145
rotary burr teeth type  double cut, diamond cut, single cut, aluminium cut
diameter head (D1 / mm)  See table
diameter shaft (D2 / inch)  3, 6
burr shape  cylindrical without cut end
rotary burr model  A
length head (L1 / mm)  13, 16, 20, 25
length (L2 / mm)  See table

Properties

material  tungsten carbide with 9% cobalt
system of measurement  mm (metric)
application  grinding
